Huajidian Outdoor Vacuum Circuit Breakers are engineered for pole-mounted distribution networks, outdoor substations, and utility power systems operating in demanding environments. Covering voltage ratings from 12kV to 40.5kV, these circuit breakers feature silicone rubber composite insulators, a fully sealed corrosion-resistant control cabinet, and high-performance vacuum interrupters for dependable switching and protection.
Manufactured through Huajidian's certified production partners in Yueqing, China, every outdoor vacuum circuit breaker undergoes a strict three-stage quality inspection process and complies with international standards including IEC 62271-100 and CE requirements. Huajidian also provides certification assistance, engineering support, and worldwide logistics services, making these breakers ideal for utility companies, EPC contractors, renewable energy projects, mining operations, and rural electrification projects throughout Southeast Asia, the Middle East, Africa, and other global markets.

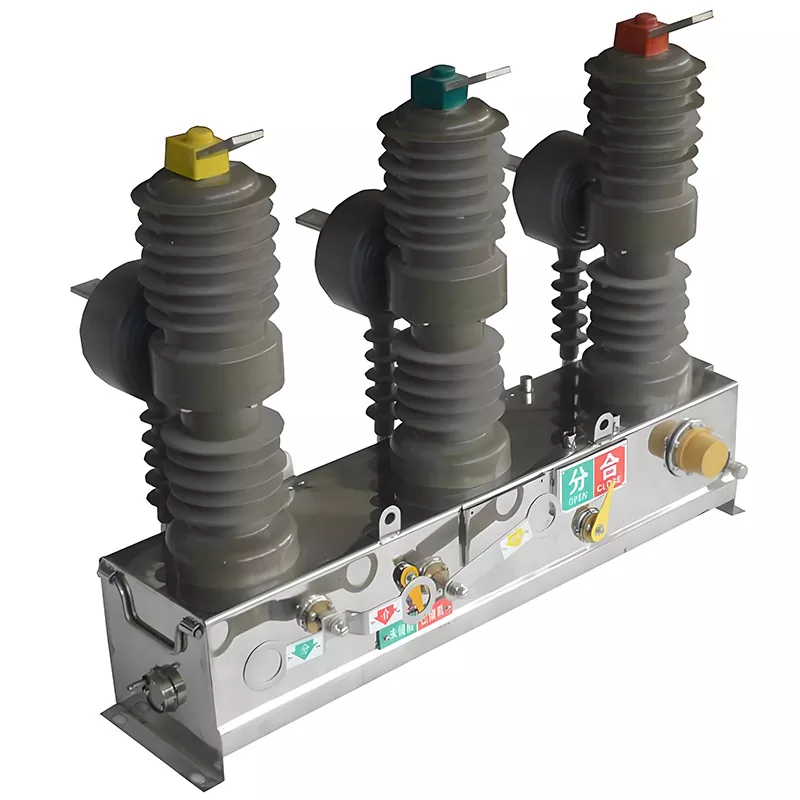

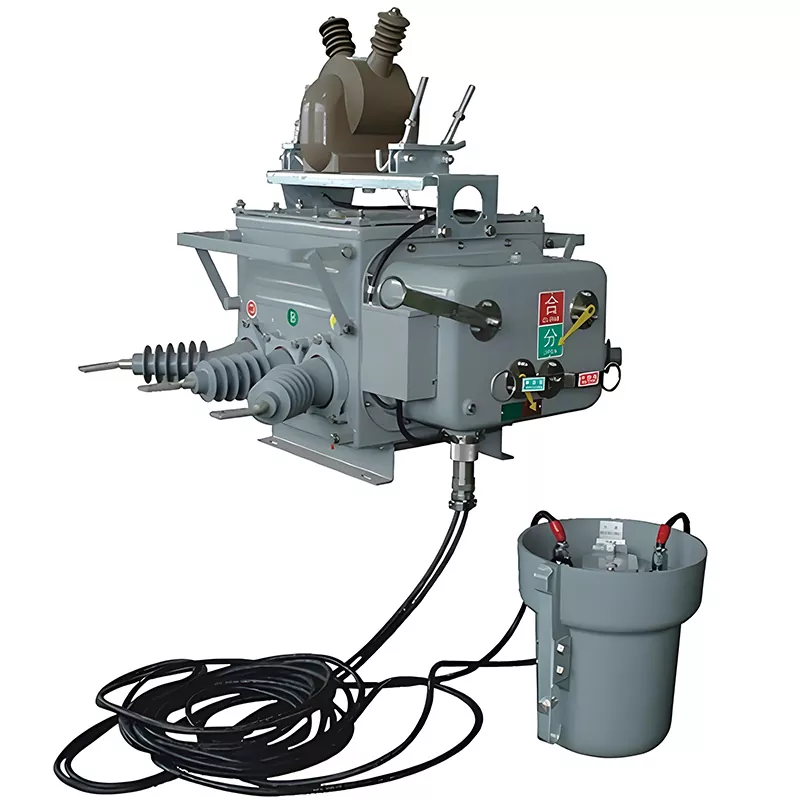

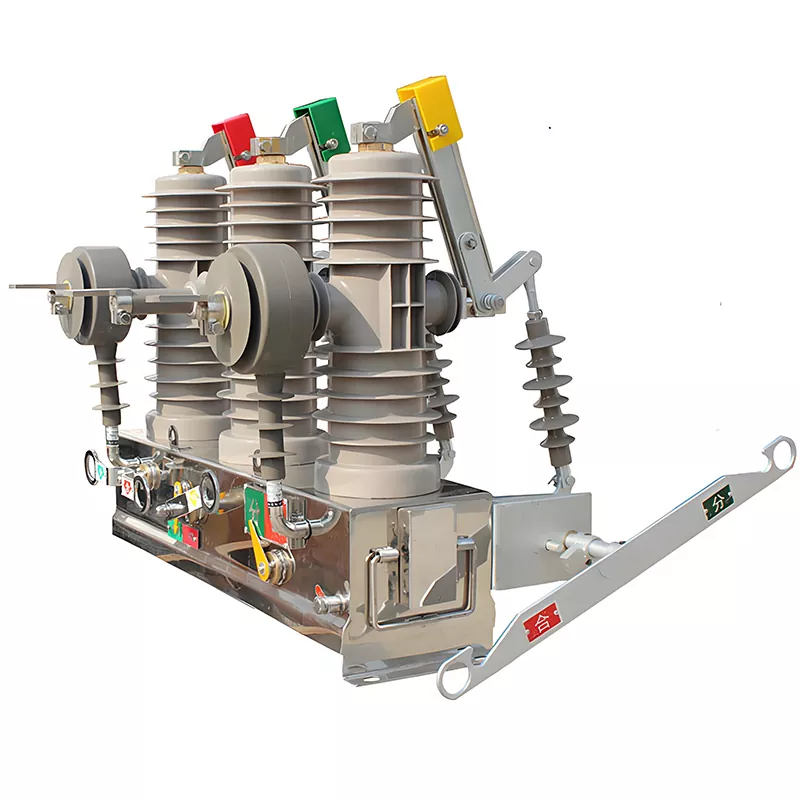

Unlike conventional indoor vacuum circuit breakers that require switchgear cabinets, the Huajidian Outdoor Vacuum Circuit Breaker adopts an integrated pole-mounted structure that can be installed directly on utility poles or transformer platforms. High-creepage composite insulators, stainless steel weatherproof control enclosures, and optional disconnect switches provide reliable protection without requiring dedicated electrical buildings, reducing installation costs while improving system reliability.
High-creepage silicone rubber insulators provide excellent resistance to pollution flashover, UV exposure, coastal salt spray, heavy rain, and desert sandstorms, ensuring reliable insulation performance under severe environmental conditions.
The corrosion-resistant stainless steel enclosure features waterproof sealing technology that protects electrical components from moisture, dust, insects, and corrosive environments, extending equipment service life while minimizing maintenance requirements.
The breaker can be equipped with motorized operation, FTU/DTU automation systems, and three-phase synchronized remote control, enabling automatic fault isolation, remote switching, and intelligent distribution network management.
Integrated surge protection and optimized insulation design improve system reliability in regions experiencing frequent thunderstorms, making the breaker particularly suitable for tropical and coastal utility networks.
Every Outdoor Vacuum Circuit Breaker completes comprehensive factory acceptance testing (FAT), including 24-hour continuous energized operation under simulated outdoor temperature and humidity conditions to ensure stable long-term performance.
Yes. The breaker utilizes high-temperature vacuum interrupters, double-layer dust-resistant stainless steel enclosures, and anti-sand coated composite insulators. It has been tested for continuous operation in temperatures ranging from -30°C to +60°C, making it suitable for desert, mining, and other harsh outdoor environments.
The standard model is supplied with a manual spring operating mechanism. Electric motor operation, remote switching, FTU automation, and smart grid communication functions are available as optional configurations based on project requirements.
Huajidian maintains inventory for major replacement components, including vacuum interrupters, operating springs, control boards, insulating poles, and auxiliary accessories across all voltage ratings. Emergency spare parts can be shipped by air to major ports in Southeast Asia, the Middle East, and other international markets within seven working days.
System zasilania 12kV, 630A / 1250A, 20kA / 25kA
Certyfikaty IEC 62271-200, IEC 694, GB3906, DIN VDE 0670
System zasilania Trójfazowy prąd przemienny 12 kV, 50 Hz
Certyfikaty IEC 62271-200, IEC 694, GB3906, DIN VDE 0670
System zasilania 12 kV–40,5 kV, 50 Hz
Certyfikaty IEC 62271-200, IEC 694, GB3906, DIN VDE 0670
System zasilania 12 kV, trójfazowy prąd przemienny 50 Hz
Certyfikaty IEC 62271-200, IEC 694, GB3906, DIN VDE 0670
